LPG GAS CYLINDERS

LPG Gas Cylinders are constructed from premium hot rolled steel and are subjected to rigorous inspections to ensure they meet the necessary safety standards. They are available in various dimensions, ranging from smaller 3 kg cylinders to massive 45 kg cylinders.

DOMESTIC LPG CYLINDERS

Mehran Metal Containers Pvt. Limited offers domestic LPG Cylinders in capacities of 2.0 kg, 4.0 kg, 6.0 kg, and 11.8 kg.

COMMERCIAL LPG CYLINDERS

Mehran Metal Containers Pvt. Limited offers 45.4 kg LPG Cylinder for commercial applications.

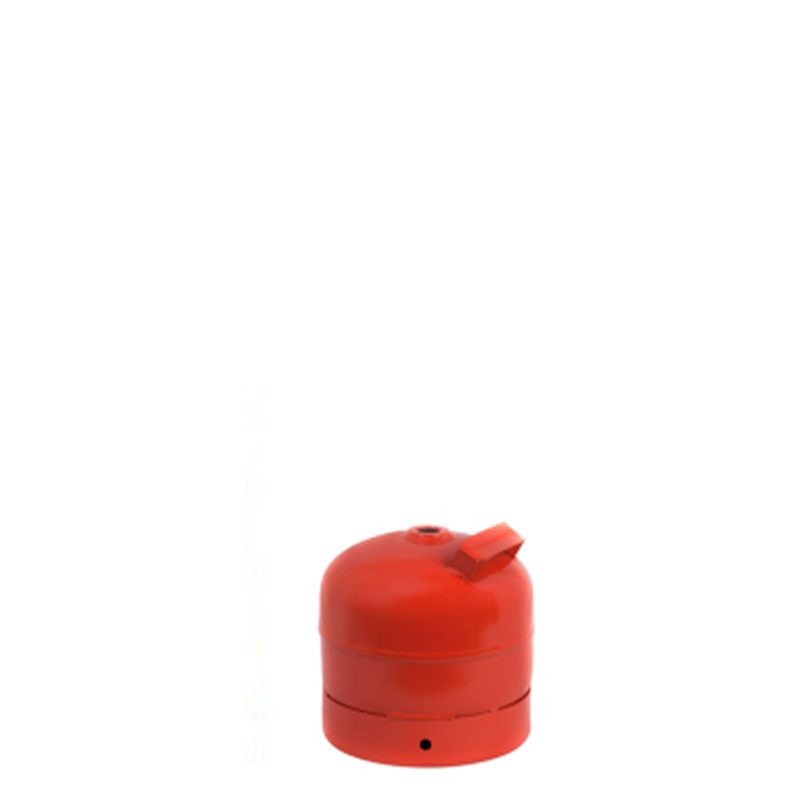

2.0 KG CYLINDER SPECIFICATIONS

Design Code DOT 4BA-270
Water Volume 5.5 LTRS
Heat Treatment at (C) 650-675
Hydro Test Pressure 540 PSI
Shot Blasting Yes
Bursting Pressure (Min) 1080 PSI
Radiograph As per Code
Material of Construction JISG 3116 Gr. SG-295 or 255
(Semitic Grain Size 6 or
Finest) As per ASTM E112-96.
Fabrication 2 Piece
Powder Coating
DFT Thickness (100 ~ 125 Micron)		 Yes
Embossing of Cylinder Data,
Company Name & Logo		 As per HPL Requirement
Screen Printing of Tare Weight on
Cylinder Body		 As per HPL Requirement
Valve Tighten Torque 100 ~120 NM Camping Valve
(Threaded Valve to Fit with
Burner on Top of Cylinder)
Pneumatic Test 110~120 PSIG Pneumatic Test



OTHER ACCESSORIES

Get In Touch

    LPG Cylinder - Domestic (4.0 kg)

    4.0 KG CYLINDER SPECIFICATIONS

    Design Code DOT 4BA-270
    Water Volume 9.5 LTRS
    Heat Treatment at (C) 650-675
    Hydro Test Pressure 540 PSI
    Shot Blasting Yes
    Bursting Pressure (Min) 1080 PSI
    Radiograph as Per Code As per Code
    Material of Construction JISG 3116 Gr. SG-295 or 255
    (Semitic Grain Size 6 or
    Finest) As per ASTM E112-96.
    Fabrication 2 Piece
    Powder Coating
    DFT Thickness (100 ~ 125 Micron)    		 Yes
    Embossing of Cylinder Data,
    Company Name & Logo    		 As per HPL Requirement
    Screen Printing of Tare Weight on
    Cylinder Body    		 As per HPL Requirement
    Valve Tighten Torque 100 ~120 NM Camping Valve
    (Threaded Valve to Fit with
    Burner on Top of Cylinder)
    Pneumatic Test 110~120 PSIG Pneumatic Test



    OTHER ACCESSORIES

    Get In Touch

    Error: Contact form not found.

    LPG Cylinder - Domestic (6.0 kg)

    6.0 KG CYLINDER SPECIFICATIONS

    Design Code DOT 4BA-270
    Water Volume 13.5 LTRS
    Heat Treatment at (C) 650-675
    Hydro Test Pressure 540 PSI
    Shot Blasting Yes
    Bursting Pressure (Min) 1080 PSI
    Radiograph as Per Code As per Code
    Material of Construction JISG 3116 Gr. SG-295 or 255
    (Semitic Grain Size 6 or
    Finest) As per ASTM E112-96.
    Fabrication 2 Piece
    Powder Coating
    DFT Thickness (100 ~ 125 Micron)    		 Yes
    Embossing of Cylinder Data,
    Company Name & Logo    		 As per HPL Requirement
    Screen Printing of Tare Weight on
    Cylinder Body    		 As per HPL Requirement
    Valve Tighten Torque 100 ~120 NM Camping Valve
    (Threaded Valve to Fit with
    Burner on Top of Cylinder)
    Pneumatic Test 110~120 PSIG Pneumatic Test



    OTHER ACCESSORIES

    Get In Touch

    Error: Contact form not found.

    11.8 KG CYLINDER SPECIFICATIONS

    Design Code DOT 4BA-270
    Water Volume 26.2 LTRS
    Heat Treatment at (C) 650-675
    Hydro Test Pressure 540 PSI
    Shot Blasting Yes
    Bursting Pressure (Min) 1080 PSI
    Radiograph as Per Code As per Code
    Material of Construction JISG 3116 Gr. SG-295 or 255
    (Semitic Grain Size 6 or
    Finest) As per ASTM E112-96.
    Fabrication 2 Piece
    Powder Coating
    DFT Thickness (100 ~ 125 Micron)    		 Yes
    Embossing of Cylinder Data,
    Company Name & Logo    		 As per HPL Requirement
    Screen Printing of Tare Weight on
    Cylinder Body    		 As per HPL Requirement
    Valve Tighten Torque 100 ~120 NM 21 & 22 mm, Compact
    Pneumatic Test 110~120 PSIG Pneumatic Test



    OTHER ACCESSORIES

    Get In Touch

    Error: Contact form not found.

    45.4 KG CYLINDER SPECIFICATIONS

    Design Code DOT 4BW-270
    Water Volume 108 LTRS
    Heat Treatment at (C) 650-675
    Hydro Test Pressure 540 PSI
    Shot Blasting Yes
    Bursting Pressure (Min) 1080 PSI
    Radiograph as Per Code

    “T” joints top and bottom of one out of 50 cylinder lot.
    Material of Construction JISG 3116 Gr. SG-295 or 255
    (Semitic Grain Size 6 or
    Finest) As per ASTM E112-96.
    Fabrication 3 Piece
    Powder Coating
    DFT Thickness (100 ~ 125 Micron)    		 Yes
    Embossing of Cylinder Data,
    Company Name & Logo    		 As per HPL Requirement
    Screen Printing of Tare Weight on
    Cylinder Body    		 As per HPL Requirement
    Valve Tighten Torque 100 ~120 NM 21 mm, Compact
    POL Type Dual (LOT + 21 mm Compact)
    Pneumatic Test 110~120 PSIG Pneumatic Test



    OTHER ACCESSORIES

    Get In Touch

    Error: Contact form not found.

    CONSTITUENT MATERIALS

    • LPG cylinders are composed of hot rolled steel of JIS G 3116 – SG 255 or SG 295 grades.
    • JIS G 3116, a Japanese material standard, addresses hot rolled steel plates and sheets utilized in the production of a standard LPG gas cylinder tank.
    • Following the JIS G 3116 standard, the material grades SG 255 and SG 295 are available in a thickness range of 1.5 mm to 20 mm and an overall width range of approximately 1000 mm to 2500 mm.

    THE PRODUCTION APPROACH

    • The manufacturing procedure for LPG cylinders includes metallic sheet development, surface preparation, and testing techniques.
    • The initial steps of the procedure include blanking, deep drawing, piercing, trimming, and joggling.
    • The welding process of the foot ring, the two halves, the valve boss, and the valve guard ring come next.
    • The assembled cylinder then undergoes heat treatment, shot-blasting, and painting before the valve is installed.
    • Ultimately, the gas cylinder is subjected to its final round of testing.
    • The primary components of Liquid Petroleum Gas i.e., propane and butane are blended in specific ratios and stored in LPG cylinders, which can then be consumed as fuel for a range of operations.

    PRODUCTION CAPACITY

    For wholesale purposes, our enterprise has a per-day bulk production capacity that exceeds 500 LPG Cylinders.

    STORAGE GUIDELINES

    • In addition to their popular use as domestic fuels. Gas cylinders are also frequently employed in commercial environments for purposes of heating, preparing food, and refueling machinery.
    • Liquid Petroleum Gas qualifies as a Category 2.1 flammable gas and is defined as a Hazardous Substance. Therefore, LPG cylinders must be stored safely using each of the following elements:
      • Locate a secure spot, preferably outdoors, to place the gas cylinders at the assigned site.
      • Differentiate and segregate hazardous chemicals as well as oxidizing agents from combustible gases.
      • All valves on LPG cylinders must be closed, all connections and equipment must be turned off, and safety caps must be secured to the cylinders. A secure gas container cage should be utilized for keeping the LPG gas cylinder tanks.

    SUPPLIER CERTIFICATES:

    As exclusive suppliers of LPG Gas Cylinders, we hold the following certifications:

    • UN numbers – awarded by D/BAM
    • TUV – issued by TUV Rheinland Product Safety
    • GOST-R Certificate
    • NATO Certificate
